Nguyen Van Tuan submitted his bid for the Can Tho bridge foundation project with confidence. His Bauer BG28 had completed seventeen similar jobs across the Mekong Delta. The technical review went smoothly. His crew had the experience, the tooling, and the schedule. Then the client asked one question that ended everything: what is your rig height? Tuan’s standard mast needed twelve meters of vertical clearance. The bridge soffit allowed four and a half meters. The two-million-dollar contract went to a competitor with a compact rig and a six-section short kelly bar.
If you work in foundation drilling, you have probably faced a similar constraint. Urban sites, bridge underpasses, indoor retrofits, and tunnel portals all share one challenge. The headroom is not negotiable. A standard kelly bar will not fit. But a short kelly bar, configured with the right section count and section length, can drill to twenty-five meters or more in spaces where conventional rigs cannot even set up.
This guide explains what a short kelly bar actually is, how it differs from a short-mast rig configuration, and how to match section count to your headroom constraint. By the end, you will know how to specify a custom low headroom kelly bar for any confined-space drilling project.
What Is a Short Kelly Bar?
A short kelly bar is a telescopic drill rod built with shorter individual sections to collapse into a compact retracted length. While a standard bar uses sections four to six meters long, a short kelly bar uses sections of one and a half to three meters. This allows the bar to retract into a mast of eight meters or less, making it suitable for low headroom drilling where vertical clearance is restricted.
The term “short kelly bar” is often confused with “short-mast configuration.” These are not the same thing. A short kelly bar is a physically different bar with shorter sections and often more of them. A short-mast configuration is a standard bar mounted on a rig with a shortened mast. The first gives you depth in tight spaces. The second simply limits how far a standard bar can extend. Understanding this distinction is the first step to specifying the right equipment.
For a complete overview of kelly bar types and how they work, see our guide to kelly bars for drill rigs.
Short Kelly Bar vs Standard Kelly Bar: Key Differences
The physical differences between a short kelly bar and a standard kelly bar determine where each can operate and what each can achieve.
Section length is the defining difference. Standard bars use sections of four to six meters. Short bars use sections of one and a half to three meters. This shorter section length is what allows the bar to collapse into a compact retracted envelope.
Section count also differs. A standard bar typically has three to five sections. A short kelly bar can have two sections for very shallow work or six to eight sections for deep drilling in tight spaces. The Bauer BG 28 H, for example, uses a special eight-section bar to reach thirty-five point three meters of depth at a rig height of only eight point eight meters.
Depth capacity is the trade-off. More sections with shorter lengths can reach impressive depths, but each additional joint reduces overall stiffness. A standard five-section bar reaching sixty meters has fewer joints and better torque transfer than an eight-section short bar reaching thirty-five meters.
Cost per meter is higher for short bars. The additional machining, welding, and heat treatment for extra sections adds fifteen to thirty percent to the cost per meter of depth capacity. But that premium opens markets and projects that standard bars simply cannot access.
| Factor | Short Kelly Bar | Standard Kelly Bar |
|---|---|---|
| Section length | 1.5-3.0 m | 4.0-6.0 m |
| Section count | 2-8+ | 3-5 |
| Retracted length | 4-8 m | 10-18 m |
| Max depth (typical) | 10-35 m | 20-90 m |
| Stiffness | Lower (more joints) | Higher (fewer joints) |
| Cost per meter depth | 15-30% higher | Standard |
| Transport | Compact, often ship mounted | Requires crane assembly |
| Best for | Confined space, low headroom | Open sites, maximum depth |
Want to compare torque ratings across configurations? Our kelly bar torque rating guide shows how section count affects torque capacity and what safety factors to apply.
How Section Count Affects Depth and Headroom
The number of sections in a short kelly bar directly determines both the retracted length and the maximum drilling depth. More sections mean more depth in less vertical space, but each additional section adds complexity and reduces rigidity.
Two-section short kelly bars are the simplest configuration. They use sections three to four meters long and retract to four or five point five meters. Depth capacity is limited to five to eight meters. These bars are ideal for very shallow utility work or sites with extreme height restrictions where even a compact rig is a tight fit.
Three-section short kelly bars are the most common entry-level configuration for confined space work. Section lengths of two point five to three point five meters give a retracted length of four point five to six meters and a depth capacity of eight to twelve meters. This is the standard setup for indoor micropiling and shallow urban utility work.
Four-section low headroom kelly bars offer a balanced compromise. With section lengths of two to three meters, they retract to five to seven meters and reach twelve to eighteen meters of depth. The SANY SR125MV uses a four-section interlocking bar with four-point-five-meter sections to achieve thirteen meters of depth in low-headroom mode.
Six to eight section short kelly bars are built for extreme constraints. Section lengths of one point five to two point five meters allow these bars to retract into five point five to eight meters while reaching eighteen to thirty-five meters of depth. The Bauer BG 28 H uses an eight-section bar to reach thirty-five point three meters. TES CAR offers configurations with up to eleven sections for headroom as low as three point two meters.
| Sections | Section Length | Retracted Length | Max Depth | Typical Headroom | Best Application |
|---|---|---|---|---|---|
| 2 | 3.0-4.0 m | 4.0-5.5 m | 5-8 m | 5.5-7.0 m | Very shallow, very tight |
| 3 | 2.5-3.5 m | 4.5-6.0 m | 8-12 m | 5.0-6.5 m | Shallow indoor, utility |
| 4 | 2.0-3.0 m | 5.0-7.0 m | 12-18 m | 5.5-7.5 m | Under bridges, moderate depth |
| 5 | 2.0-2.5 m | 5.5-7.5 m | 15-22 m | 5.5-7.5 m | Deep urban, tunnel portals |
| 6 | 1.8-2.5 m | 5.5-8.0 m | 18-28 m | 5.0-7.5 m | Under bridges, deep holes |
| 7-8 | 1.5-2.2 m | 5.5-8.5 m | 20-35 m | 4.5-7.0 m | Extreme low headroom |
Six Applications for Short Kelly Bars
Short kelly bars are not a niche product for odd jobs. They are essential equipment for six major categories of foundation work where headroom is permanently restricted.
Under Bridges and Overpasses
Bridge foundation work often requires drilling directly beneath the existing deck. Headroom ranges from three to eight meters depending on the bridge design. A four to six section short kelly bar is typically the right choice. The bar must be short enough to clear the soffit but long enough to reach the bearing stratum below. Interlocking bars are preferred in this application because the torque transmission is more reliable when working at an awkward angle.
Inside Buildings and Basements
Building retrofits, underpinning, and basement extensions require drilling inside existing structures. Ceiling heights of two point two to four meters are common. The KLEMM KR 704-2E, an electric rig designed for indoor work, operates at two point two to three point two meters of headroom using one point five to two meter rods. In Shanghai, a building retrofit team used a similar compact rig with a three-section short kelly bar to complete one hundred twenty-seven micropiles inside a parking garage. The three-point-five-meter ceiling height made standard equipment impossible. The short bar setup finished the project without disrupting building operations.
Tunnel and Subway Projects
Metro expansions and tunnel portals present some of the most severe space constraints. Vertical clearance inside tunnels can be as low as four meters, yet foundation piles may need to reach twenty to twenty-five meters for portal structures. A European metro tunnel extension used eight-section short kelly bars to reach twenty-four meters of depth in a workspace with only four meters of vertical clearance. The project team reported that drilling speed improved by approximately thirty percent compared to adapted standard rigs because the purpose-built short bar telescoped smoothly without the awkward section transitions of a jury-rigged setup.
Under Power Lines
Overhead electrical infrastructure creates hard clearance limits for drilling operations. Standard rigs risk contact with high-voltage lines. Compact rigs with short kelly bars eliminate that risk while still delivering the depth needed for transmission tower foundations. A four or five section bar is usually sufficient for these applications.
Urban Utility Work
Street-level utility installations in dense cities often have to work beneath existing water mains, sewer lines, and communication ducts. Headroom may be limited to five or six meters. Short kelly bars allow micropile and anchor installation without street closures or demolition of overhead infrastructure.
Near Rock Cliffs and Tight Lots
Some sites have open sky above but no space to swing a standard rig. Narrow urban lots, cliff-edge foundations, and hillside stabilizations all restrict the footprint and sometimes the height of drilling equipment. Compact crawlers or excavator-mounted units with short kelly bars navigate where full-size rigs cannot fit.
If you are evaluating rig compatibility for a compact setup, our kelly bar compatibility guide covers kelly box dimensions and cross-brand matching.
Performance Trade-Offs: What You Give Up
A short kelly bar solves headroom problems, but it introduces compromises that every buyer should understand.
Reduced stiffness is the most significant trade-off. Each telescopic joint is a potential flex point under torque and crowd load. An eight-section bar has seven intermediate joints. A standard four-section bar has three. Under heavy torque, the additional joints in a short bar can create whipping or oscillation that reduces drilling accuracy and accelerates wear.
Increased wear on intermediate joints follows directly from the stiffness issue. The drive keys and locking recesses in each joint experience more stress when the bar flexes. Short bars typically require more frequent inspection and earlier replacement of intermediate wear components.
Slower drilling cycle times occur because short bars have more extension and retraction steps. Each additional section adds time to the telescoping cycle. On a production piling job, those extra seconds per cycle accumulate into measurable delays over a full shift.
Higher cost per meter is the economic reality. The additional sections require more material, more machining, more welding, and more quality inspection. Manufacturers price short bars fifteen to thirty percent higher per meter of depth capacity than equivalent standard bars.
These trade-offs are worth accepting when the alternative is not bidding at all. A short kelly bar that costs twenty percent more per meter is infinitely more valuable than a standard bar that cannot fit through the door.
Specifying a Custom Short Kelly Bar
Most short kelly bars are custom-built because headroom constraints are specific to each project. Here is how to specify one correctly.
Step one: measure the available headroom. This is the absolute minimum vertical clearance from ground level to the lowest overhead obstruction. Do not estimate. Measure at multiple points across the work area. Bridge soffits slope. Ceilings have beams and ducts. The lowest point is your constraint.
Step two: determine the required drilling depth. The bar must reach the design depth with some margin for overbreak and cleaning. Add one to two meters to your target depth when specifying.
Step three: choose section count and section length. Divide the required depth by your preferred section length to estimate the section count. Remember that the retracted length must fit within your headroom minus the rig structure height. If the numbers do not work, adjust section count or section length and recalculate.
Step four: verify torque and crowd capacity. Short bars with more sections can handle the same torque as standard bars if built from the right materials. Specify the same steel grades you would use for a standard bar in equivalent ground conditions. Our kelly bar materials guide explains how to match steel grade to ground conditions.
Step five: check rig compatibility. Short kelly bars require compact rigs with matching kelly box dimensions and reduced mast heights. Verify that your rig or rental equipment can mount the bar and achieve the required crowd force.
Step six: request a custom quote. Short kelly bars are rarely available from stock. Provide your headroom measurement, depth requirement, rig model, and kelly box size. A qualified manufacturer will confirm the section count, section length, and material specification before quoting.
Ready to specify a custom short kelly bar for your project? Contact Changsha Mingyi for technical consultation. We design and manufacture custom low-headroom Kelly bars with full material certification and compatibility verification for Bauer, Soilmec, SANY, and other major rig brands.

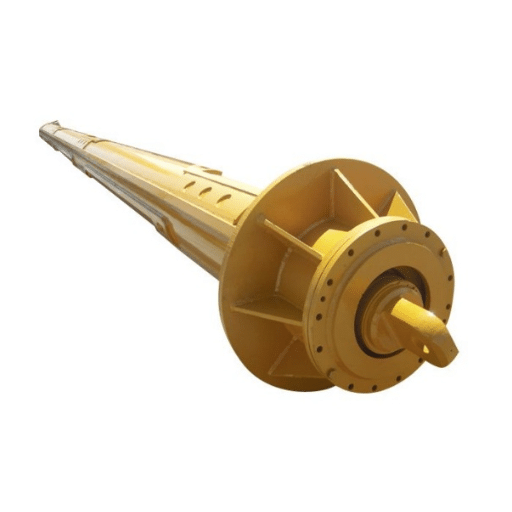

Short Kelly Bar Selection Checklist
Use this checklist before ordering a short kelly bar for your next confined-space project.
- Measure minimum headroom at multiple points across the work area
- Determine required drilling depth plus one to two meters margin
- Calculate section count based on headroom and depth requirements
- Verify rig compatibility: kelly box size, mast height, crowd capacity
- Specify steel grade based on ground conditions
- Choose interlocking or friction type based on torque and soil needs
- Confirm transport dimensions if the bar ships mounted on the rig
- Request material certification and weld inspection records
- Plan for more frequent intermediate joint inspection vs standard bars
- Budget fifteen to thirty percent cost premium per meter of depth
Conclusion
Nguyen Van Tuan lost a two-million-dollar contract because he assumed his standard equipment could handle any job. The bridge soffit proved otherwise. Headroom is not a secondary specification. It is a hard constraint that determines whether you can bid, whether you can mobilize, and whether you can drill.
A short kelly bar is the solution when standard equipment will not fit. It is not a standard bar with fewer sections. It is a purpose-built telescopic drill rod with shorter sections, often more of them, engineered to reach impressive depths in spaces where conventional rigs cannot operate.
The key is matching section count and section length to your actual headroom constraint. Two to three sections for shallow indoor work. Four to five sections for bridge underpasses. Six to eight sections for extreme depths in tight tunnels. Each configuration has trade-offs in stiffness, wear, and cost. But each opens projects that would otherwise be inaccessible.
If you are bidding a job with restricted headroom, start by measuring your clearance. Then specify a short kelly bar that fits. For help with custom design, material selection, and rig compatibility, contact Changsha Mingyi. We manufacture short kelly bars for low headroom applications worldwide, with full engineering support and material certification.
