Introduction to CFA Continuous Flight Auger Piles
What is a Continuous Flight Auger?
Continuous Flight Auger (CFA) is a piece of specialized drilling equipment used for the construction of deep foundation elements, mostly on construction and geotechnical engineering projects. This technology operates by employing a long and hollow shaft that has a continuous spiral flight in order to make the soil drilling process more efficient and at the same time to provide for the stability of the borehole. When the auger is being put into the ground, no supporting casing is needed, the structure is held by the surrounding soil mass. Later on, when the required depth is reached, concrete is being pumped through the hollow auger making the borehole becoming a reinforced concrete pile by displacing the excavated soil. That way, this process can be done with very little disturbance to the ground and can cover various types of soil including loose sands, cohesive clays, mixed strata; thus, the method will surely be the most reliable and cost-effective choice for foundation supporting in different conditions.
How CFA Piles Work
The CFA (Continuous Flight Auger) piles are an optimal choice for geotechnical applications due to their peculiar installation process and adaptability. One major benefit of the method is that it significantly reduces noise and vibration levels in comparison with the traditional pile-driving techniques which is why CFA piles are a great, if not the best, option for locations that are urban or noise-sensitive. Another advantage is that the continuous augering process does not provoke soil instability or collapse which is very important in harshly structured (with plenty of loose granular soil or groundwater in close proximity) terrains. CFA piles are also very easy to work with in terms of the range of load capacities that they can carry and they are therefore used in the entire spectrum of residential, commercial, and industrial works. Moreover, the in-situ formation of the pile by pouring concrete that is freshly pumped results in a fit that is perfect with the surrounding soil and, on top of that, gives a very good load transfer efficiency and, thus, structural reliability. However not all piles can transform these ideal practices into an actual solution the way CFA piles do, it being the most ecological, eco-friendly, cost-effective solution in lesser as well as mixed profile geographical situations.
Overview of Installation Process
The process of installing Continuous Flight Auger (CFA) piles is carried out very carefully so as to guarantee the stability and strength of the foundation and at the same time allowing the load to be distributed evenly. In the first step, a hollow-stem continuous flight auger will be inserted into the soil and move to the required length of the pile by taking out the soil at the same time. When the auger is pulled out, concrete is continuously pumped at high pressure into the hollow stem that fills the cavity left by the auger hence and thus a pile is created in a very solid and unbroken form. Rebar jackets are installed into the soft (fluid) concrete offering an increased tensile strength and performance of the structure whereas the concrete has not set yet. The use of monitoring systems with the latest technology makes it possible to monitor in real time the torque, pressure, and the pile depth and so the process will be perfect. With this system in place, changes in soil conditions will not be a problem because CFA piles remain a strong, durable, and safe choice for foundation solutions.

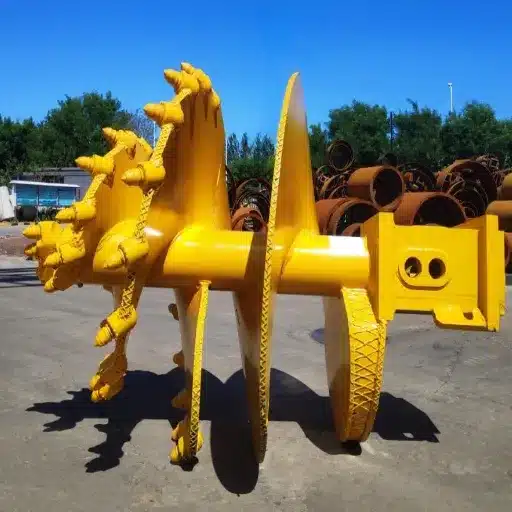

Advantages of Using CFA in Construction
Efficiency in Installation
CFA piling, which employs a continuous and uninterrupted process, is a lot easier in terms of the installation work than the stage-by-stage approach. The new method does away with the water-tight casings and the like, making it almost effortlessly functional. The casing being a thing of the past, the operation is made more efficient. There are no more separate stages, which would mean lots of operations needing different people or groups to work on them. The drilling and casting of concrete can be done at the same time without interrupting each other; this not only leads to shorter project timelines but also to fewer delays and hence a more efficient use of resources. The use of automated systems on the sophisticated machinery allows for the monitoring of the process very closely and thus conflicts are minimized and the operator’s task greatly simplified. Excessive noise and vibrations are not issues with CFA piles, unlike with those cases when the pile has to be hammered into the ground. Hence, CFA piles are recommended for installation in urban areas or in places where interruptions and noises will not be tolerated.
Cost-Effectiveness Compared to Other Methods
When compared to alternative foundation methods, Continuous Flight Auger (CFA) piling proves to be the most cost-effective due to a variety of reasons. A single-flight auger provides the whole solution in one go- drilling and pouring concrete all at once- which in return saves months and eliminates labor costs. The substructure cost is thus reduced and at the same time the resources are used efficiently. Moreover, the method does not require high tech machinery that much and is eco-friendly because it uses less reinforcement steel. On top of avoiding the capital expenditure related to the handling of noise, vibrations, and rigorous site preparation, especially in eco-sensitive areas, CFA piling is also able to deliver a consistent cash flow to the builder. The combination of these factors results in CFA piling being a wise financial decision which, in reality, has reached the topmost for quality and stability.
Less Concurrent Vibration and Noise
CFA piling is factually tailor-made to tackle vibration and noise related issues, which makes it a perfect technique for urbanized or sensitive ambiances. The technology is introduced through a continuous screw element that eliminates the ground disturbance at drilling as well as at pile installation times. In contrast to conventional methods that use hammering or percussion driving, CFA piling does not produce such loud noises, a vital benefit for the areas close to housing, hospitals, or older structures. Moreover, the vibration effect on the ground is insignificant, thus there will be no potential harm to the structures near the spot or disturbances to the other underground utilities. This slowness in shaking the ground also helps the project to meet the stringent regulations that are often imposed in heavily populated areas or where noise is a problem. By embracing CFA technology, the engineers will not only be able to preserve environmental harmony but will also achieve high performance and cost-effective results through the construction phase.

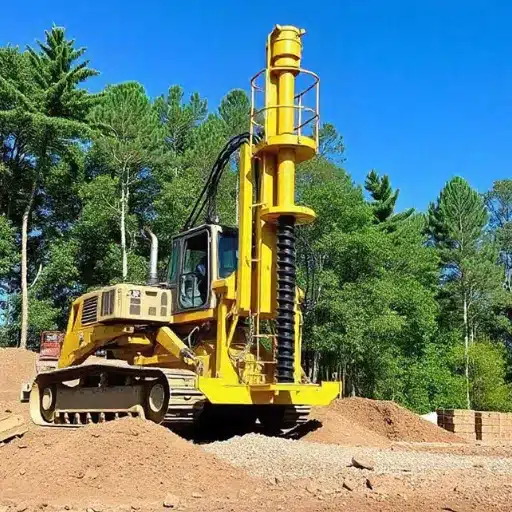

Soil Conditions and Their Impact on CFA Pile Performance
Understanding Soil Types for CFA Applications
The soil on-site has a strong impact on the effectiveness and productivity of the Continuous Flight Auger (CFA) piles. It is a must to know the soil conditions in a more precise way during both designing and executing the projects to be compatible with CFA piling techniques. Cohesive soils, like clay, usually make drilling a piece of cake because of their stability, but in terms of load-bearing capacity, they can still differ subject to moisture and compaction. On the other hand, non-cohesive soils, i.e., sand or gravel, may be a hassle to keeping the bo…”
When we speak about soil being in layers, we are actually speaking of stratified soil. In this type of soil, one can find different types of soil at different depths. This requires experienced analysis to identify the areas that the load will press the most and also where the set of piles will sink. The penetration rate may be affected by dense or compact layers, while in the case of loose layers, the displacement of the material must be carefully prevented. Moreover, situation-specific factors including groundwater levels are the direct determinant of the CFA pile installation process since high water levels may result in bore instability and even reduction in pile strength. Modern geotechnical explorations which are inclusive of the cone penetration test (CPT) and borehole sampling are today’s vital means of accurately subsurface condition mapping, making the designing of CFA piles according to the specific needs of each location easy for the engineers at the project site.
Soil Due Diligence Pre-Construction
The assessment of soil conditions before laying CFA piles is a vital aspect of the process that affects installation and maintenance reliability. The mechanical properties of soil such as particle size distribution, cohesion, shear strength, and consolidation properties have to be tested thoroughly and their behavior under the loadings through piles prior to starting the designer grace capacities. Sophisticated techniques in laboratory testing such as box shear and triaxial tests give empirical values of these parameters which means these can be analyzed in detail to understand the soil behavior under stress very well.
Modern software in geotechnical engineering has advanced so much to the point that it can even conceive of pile-soil interaction in different conditions and by this show the engineer what will come of its performance. The land of a site can have various degrees of firmness and this fact can be the reason for the differential settlement; therefore, thorough soil profiling that is restricted to the weak spots or displacements should always come first. Good quality of soil characterization gives possibility to the selection of the best pile diameters, depths, and reinforcement practices and by this, the issues of the construction process safety and prevention and the structure’s durability are solved almost 100%.
The suitability of the software for use in various types of soil
The use of the most advanced foundation engineering methods are the ones that can help structure under a variety of soil conditions with the least possible risk to their aspects of durability and efficiency. Through the use of modern geotechnical analysis tools, ground information is now being used together with numerical models, enabling engineers to now accurately predict the mechanical behavior of the soil under different loads and conditions. In some cases, e.g. high compressibility soils like clay, soil stabilization techniques may have to be applied such as preloading, or/and use of geosynthetic materials in which case stability would be enchased. In the case of soil sands which are highly permeable, providing enough bearing capacity may be done through the use of driven piles or deep foundations to obviate the weaker strata. By the use of highly detailed site investigations and state-of-the-art engineering methodologies, the foundation elements can be designed to confront the issues of lateral soil movements, moisture fluctuation, and seismic activities. With this flexibility, the structure will be surely standing even in the most challenging and unexpected geotechnical environments.
Comparison with Other Pile Types
Continuous Flight Auger Piles vs Bored Piles
The two most commonly used deep foundation systems are Continuous Flight Auger (CFA) piles and bored piles, each of which has its own unique advantages as per the site-specific needs and geological conditions. The CFA piles are made by the method of drilling and at the same time filling the hole with concrete under pressure. This process confirms high integrity and less ground disturbance. The system is especially beneficial in the areas of where noise is an issue, i.e., in the urban environment, as it cuts down on both vibrations and noise effects, and is also useful for the soils that are loose or cohesive in nature.
Speaking on the opposite side, bored piles are related with soil removing with a shovel type drilling equipment, then reinforced and concreted are added subsequently. This method offers the possibility of having larger diameters and hence larger loads can be withstood, which makes it a perfect choice for high-rise buildings and bridges construction projects that need robust reinforcing. Nevertheless, bored piles might have more spoil & have to take extra care to keep the hole stable in poor and water-soaked soils.
So CFA piles-those are the ones made by the CFA method, one of the possible choices-what comes out sooner than the former kind and what is better for the use in medium-size reinforcement cases. Nevertheless, bored piles provide the best support for the strongest loads and difficult ground conditions. The selection of the correct technique should be done based on a wide range of analyses and considerations including geotechnical aspects, load, and eco-friendliness for the most optimal foundation outcomes.
CFA Piles vs. Displacement Piles
Continuous Flight Auger (CFA) piles and displacement piles are two different ways to form piles and they each have their pros and cons that depend on the project requirements and the conditions of the site. The CFA piles are built by boring into the ground with a hollow-stem continuous flight auger that contains low-vibration and the need for transport of the soil. This technology is particularly useful in the construction of the piles close to the building as it results in very little noise and shaking. On the contrary, displacement piles are piled into the ground without the taking out the soil; thus, they enhance the support and load-bearing capacities by compressing the surrounding soils.
Piles that displace soil have the ability to bear higher loads and also to some extend to increase the bearing capacity of the soil at the foundation. But since the vibration and noise that are created in the process has been so much, it is hard to use it in such areas like old cities or near ancient buildings. On the other hand, CFA piles can be driven and installed quickly and quietly, but their efficiency in compact soil or under heavy load is questioned. When making the decision, the geotechnical data needs to be reviewed in detail and land use zonings, noise codes, and environmental requirements related to the installation of the pile need to be checked as well. Besides, the probable loads coming to the foundation should accord with the piles’ capacities which can be found out by defining the foundation in the right way.
Large Diameter CFA Piles: A Versatile Solution
CFA piles, commonly referred to as Continuous Flight Auger piles or CFA piles, are widely known for their low-noise and low-vibration characteristics and, at the same time, their high load capacity and also their capability of being applied to both urban and environmentally restricted sites.dropIfExistsDriven piles are used to drive the piles into the ground, but the CFA piles are built in the ground by drilling and injecting concrete at the same time through the hollow stem of the auger, the process of construction has, on the whole, been determined both by the structure and the load.
Large diameter CFA piles are very versatile and can work very well in areas with different soil layers, for instance, soft clays, silts, and loose sands, where other methods may face difficulties. Piles that are able to perform and are used in the ground. Also, precision when it comes to the pile depth and diameter is kept through the use of sophisticated installation methods and equipment, which makes it possible to meet exactly the necessary engineering requirements. Furthermore, with the latest pile modeling developments and the use of sophisticated monitoring systems, the reliability of CFA piles has been very much enhanced by such systems as the real-time concrete flow rate, and the penetration of the auger is also tracked. These and more advancements being made by and large, make it possible that the contractors will be now optimizing the values, thus, for one thing, economic and ecological aspects of they’re building a very different type of construction.__

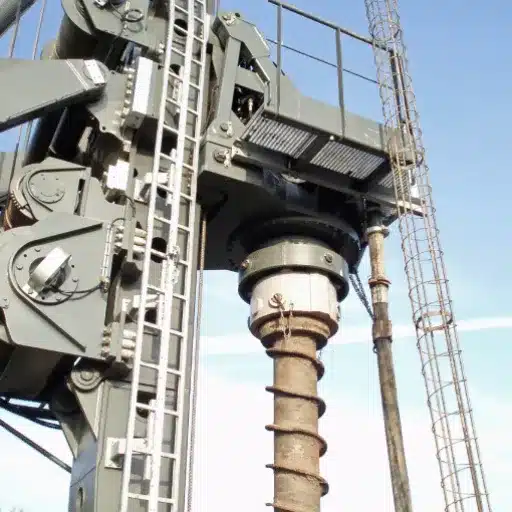

Technological Innovations in CFA Drilling
Advancements in Drill Rig Technology
In my view, changes in drill rig technology have remade the construction and geotechnical engineering sectors into leaders of efficiency, precision, and safety. A contemporary rig that embraces automated systems is the one that fits and aligns with the accuracy beyond expectations for the drilling and monitoring. Components that are important like digital control panels, GPS-guided drilling systems, and automated rod handling lower reliance on manual intervention thus, reducing the likelihood of human error and improving productivity at the site at the same time. Additionally, a highly effective telemetry system is also one of the features that a modern drill rig has, which is to ensure the real-time feedback on the drilling torque, pressure, and depth so that the drilling job follows the engineering specifications and allows adjustments then and there.
Moreover, the deployment of modular and hybrid power solutions is yet another major pivot. These days, many of the modern drilling machines are engineered in a way that they can work with electricity or hybrid energy systems, which drastically cut down the consumption of fuel and greenhouse gas emissions. The aforesaid change links perfectly with the concept of going green in the construction industry and thus has to do with the environmental issue resolution. Also, the improved mobility of the rig has made the process of operation very simple and optimized; the rigs having the characteristics of being lighter, smaller, and tracks having the potential of being stretched can now serve the purpose and be efficient regardless of the location or the surface.
All in all, the evolutionary trajectory of drill rig tech is to show that the construction arena is all about constant quests for the new and better solutions and at the same time, the serious focus on eco-friendship, efficiency, and durability is noticeable and leads to the creation of practices closer to safety and accountability, in a word, ideal building practices.
Continuous Flight Auger Drilling Innovations
Speaking from my point of view, the area of continuous flight auger (CFA) drilling has been undergoing serious changes for the past years mainly due to the surge in demand for highly effective and accurate foundation options that are not harmful to the environment. This procedure, which is commonly used in constructing deep foundations, has acquired an entirely new shape thanks to the introduction of the top-notch technology, which, in turn, has made it possible for much better precision and control both during the drilling and pouring processes. The installment of the data logging system became one of the core innovations, which allowed the field personnel to directly follow the readings such as the torque, pressure, and depth in the course of the operations. This action not only guarantees the stable and the right placement of the foundations but also tackles any potential challenges on-site that occur.
Undeniably, the utilization of automated systems and robotic support in the CFA rigs constitutes a significant step that has minimized human errors and reduced the intensity of work. They are currently computer-controlled to confirm the sameness of rotation of the auger and the supply of grout/cement, thus, the whole process is optimized for the best quality together with the fastest speed. Furthermore, the use of electric or hybrid-powered rigs is a major contribution to the environment by reducing the carbon footprint of projects. The move to more environmentally friendly solutions is yet another demonstration of the industry’s commitment to and compliance with the global environmental standards and at the same time the lowering down of their operations’ costs has been economically. UNK
The use of CFA technology in the construction industry, in general, highlights the correlation between tech progress and practical usages. It opens up the era of providing safe, highly efficient, and green solutions. Further sharpening and putting these cutting-edge techniques to use not only will but can completely alter the face of the foundation industry; they can also help in designing the current era’s construction pretty well environmentally and operation-wise.
Monitoring and Assurance during CFA Installation
When setting up Continuous Flight Auger (CFA) pile installations, my priority is being sure that I have put in place strong and efficient monitoring and quality assurance systems to ensure the construction works are carried out precisely and reliably all through. The performance of CFA piling largely relies on the control of such parameters as the depth of drilling, the rate of foundation’s penetration of the auger, and the grout flow and pressure. Cutting edge instrumentation systems can be used to the advantage of any project through the unbroken safeguarding of the critical data. If the deviations from the project specifications are found through the acquired data, then the adjustments can be done instantly making the process efficient and assured. This not only minimizes the risks but also verifies that the used materials and methods are indeed in line with the design standards and site-specific requirements.
I would also like to add that it is very important to thoroughly plan and test the pre-installation procedures. Prior to the beginning, I study the geotechnical conditions to predict the possible challenges that may appear, for example, the presence of groundwater or variable soil strata. As for the installation process, I use the latest technologies, for instance, electronic data loggers to monitor the piling parameters, so the data is being automatically recorded, thus ensuring post-installation traceability and analysis. Verification of the grout density and flow rates is crucial to prevent defects including voids or segregation, and that is why, it is inevitable to perform the mentioned check-ups to guarantee the structural integrity and load-bearing performance.
Another vital step to take is the verification after the installation is completed. That would mean check the strength of the piles with load tests. It also includes performing some non-destructive testing methods like CSL which investigates the pile quality through sonic waves. All these measures together make a firm assurance platform that paves the way for CFA installations’ success. With the application of the most recent controlling tools and the observance of strict production quality management the goal of efficient, safe and long-lasting results in keeping with engineering and regulatory standards will be attained by me.
Reference Sources
-
Design And Construction Of Continuous Flight Auger Piles – A detailed guide on CFA pile types, materials, and construction procedures.
-
Continuous Flight Auger Pile Bridge Foundation – A study exploring the use of CFA piles as an alternative to driven piles in bridge construction.
-
DFI Augered Cast-in-Place and CFA Piles – Discusses the construction process and benefits of CFA piles in various engineering applications.
Frequently Asked Questions (FAQs)
How does CFA outperform other deep foundation methods?
Continuous flight auger, also known as CFA, is the prime choice for foundation work, as it is the method where a hollow-stem auger is used to create cast-in-place piles through which the concrete is placed as the auger is pulled out and the borehole kept stable, i.e., no the need is to excavate a full shaft. As opposed to the noisy and vibrating rotary drilling methods, it supports a wide range of depths and can reach the deepest values that are mostly stipulated in the project specification sheet. Steel cages or rebars can be inserted after the pouring of concrete, which results in the creation of reinforced concrete piles with much better bearing and load-carrying properties. The nature of the ground such as soft soils, loose fills, and some hard soils affects the equipment type to be used in terms of the torque requirements and the extraction force needed to pull the auger out. Its ability to adapt and occupy a smaller part of the excavation area makes it good for being utilized in urban areas and for projects where the movement has been restricted through the presence of buildings or retaining walls of height.
How does cast-in-place process work with auger-casting system?
In auger-cast or CFA construction, the hollow auger is drilled down while rotating, thus forming the borehole and then grout or concrete is pumped through the hollow stem of the auger slowly extracted. This way a continuous cast-in-place pile is created. Such a synchronous turning and pulling-out system will determine the depth of penetration and will prevent the ground from collapsing that using temporary casings is even not required in many ground conditions. The reinforcement cage is such that it can be by means of a crane steel it completely into the wet concrete to reinforce the pile and enhance pile integrity and load-bearing performance. Extraction rate, torque, and pumping pressure are three among other extracted that when monitored make the grout flow continuously with no voids. It is a technique that when correctly specified, gives reinforced concrete piles that have the capacity and settlement performance and are of good quality. A certain level of intelligent work is required in monitoring the parameters of the process and in properly specifying the resultant conglomerate of piles and regarding the strength of the piles as structural elements.
Why is CFA recognized as versatile compared to other drilling methods?
The versatility of CFA is due to the fact that it can be used in a variety of ground conditions and project specifications, from the shallowest underpinning to deep piles with very large depth requirements. The technique can be performed with temporary casings or telescopic attached casings when passing through loose or granular layers, and it can very seamlessly to the implant of the reinforcement cages for the grouting. The relatively quiet and low vibration of the method make it the preferred choice in the inner city or places that are very sensitive in terms of the environment. Hydraulic and rotary equipment are also among the offerings that make the method quite usable because they provide the option to apply the required amount of torque and pulling power. It is the designer’s job to specify the diameter, grout mix, and reinforcement variations so as to achieve the required bearing capacity and lateral performance. In general, CFA compared to some types of traditional bored piling methods, reduces the requirements for the excavation and the stability of the shafts.
Could augers with the helix be the solution to the problem of penetration and extraction efficiency of CFA systems?
The CFA system relies on helical or continuous flight augers for the purpose of efficient cutting of the ground by penetration and at the same moment conveying the cuttings to the surface while keeping the stability of the borehole. The rotation of the helical also affects the torque and the removal behavior; keeping a good eye on the rotation speed and extracting rate would minimize the chance of waste soil falling off as well as ensure a strong bond of concrete or grouting in the hole. In case of stiffer native or driven soils, higher torque and hydraulic power might be necessary and in some cases retractable casings or secant piles are taken into account to provide extra stability. The grout pumped through the helical during uplift forms a continuous, hollow-stem cast-in-place pile that delivers high load-bearing capacity and pile integrity. This method simultaneously allows the excavation process to be conducted while spoil handling is minimized as opposed to the conventional bored method thus posing environmental benefits.
How are reinforcement cages installed in CFA piles and what role do they play in load-bearing?
Reinforcing bars are mostly set down into the fresh concrete column at its base immediately after the auger is removed and grout has been placed, while in some cases, the entirety of the cage might be placed before the auger has been completely removed. Significant increase in bending resistance, hence, vertical load resistance, along with increased lateral performance and long-term capacity, which are all crucial for piles which support retaining walls or super heavy structures are the main advantages of these cages. In other words, it is a must that the cage is properly sized with the bars and materials accordingly otherwise the concrete could be easily overloaded even days after it has been set.
What testing and parameters are used to ensure pile integrity and capacity in CFA piles?
The testing of pile integrity and bearing capacity is done by the use of on-site monitoring and testing as well as through the utilization of different techniques such as the measurement of torque, extraction force, pumping pressure, and penetration rates during construction, and later on, the application of post-constructed tests like static load tests and integrity testing through methods like low-strain sonic, etc. ACIP and similar instruments are typically used for the purpose of monitoring grout placement as well as for the checking of continuous concrete columns in which the main concrete is cast around the cage. Meanwhile, static load tests are employed for determining the pile capacity and also, the settlements that will take place under the applied loads. Maximum depth, grout volume, and the position of the cage are among the many factors that shall be monitored during construction in order to ensure that the final condition of the pile matches with the design specification and predicts the long-term performance of the foundation. Noises, borehole stability, and the overall cleanliness of the construction site should be strictly supervised to avoid compromising the quality of the pile. All these measures together help the piles to be found in good working order and the design load of the pile and settlement to be easily met.
What are the possible conditions where CFA may not be the best option?
CFA is not a good choice for a situation where there are many large obstructions, boulders, or very dense layers of strata that earth drilling with CFA might not be very successful or would necessitate too much effort and put the auger at a high risk of damages, and where there is a need of secant or cased boreholes for the concrete support because of the adjacent excavation. Along the same line of reasoning, when dealing with a situation like this, people may decide to go for the alternative method of drilling which is the rotary drilling combined with some temporary casing, or the use of the case of the helical piles which are specifically designed for obstructions of this kind. The conditions in the ground may change so much that it becomes very difficult to get the grout to displace at the right rate and the plant to pull out due to thickness decrease thus indirectly affecting the integrity of the pile. From this, we can in a way conclude that if the piles are to be handled properly as well as the process of piling, then the chances of the grouting and extraction of the pile going wrong are very minimal. In case of the existence of high loads for compensation or row of walls, interaction of the piles becomes very critical so the designers may opt for the combined method or deep reinforcement provided for in the current building regulations. Nevertheless, the CFA method not only very often produces a far better result but also shows more flexibility when the equipment and the setting-up parameters are chosen correctly for the particular place.
